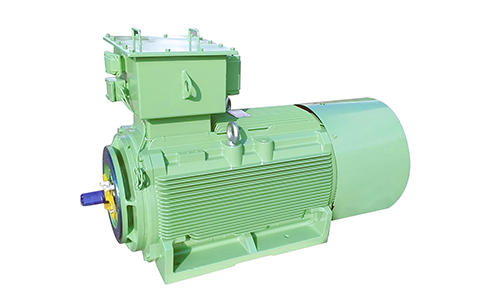

TECO GB1 High Efficiency Motors TECHNICAL DATA:

●Kind of Motors：Squirrel - Cage Induction Motors ( SCIM ).

●Design Standards：IEC/GB

●Voltages：380V

●Frequency：50Hz

●Output Range：4kW ~355kW.

●R.PM.(Syn.)：3000~750 RPM.(2~8 Poles )

●Time Duty：Continuous.S1,S.F.: 1.0.

●Frame Nos.：160M~355L.

●Protection Enclosure：Totally Enclosed ( IP 55 ).

●Cooling Method：Self External Fan,Surface Cooling ( IC 411).

●Mounting：

    AEEV5N( 160M-355L):Horizontal Foot Mounted B3 ( IM 1001)

    AEUV5N ( 250M-315M ):Horizontal Flange Mounted B5 ( IM 3001)

    AEEV5N( 160M-355L):Horizontal Foot And Flange Mounted B35( IM 2001）

    AEUV5N( 250M-355L):Vertical Flange Mounted,Shaft Down V1 ( IM 3011）

TECO GB1 High Efficiency Motors Application：

●Environment Conditions：

    Place : Shadow，Non-Hazardous.

    Ambient Temperature :-15 ~40CRelative

    Humidity : Less Than 90%RH (Non-Condensation )

    Altitude : Less Than 1,000 Meters .

●PowerSource Conditions：Voltage: +10%,Frequency : 5%，and 10% Max.of Combined Voltageand Frequency. But Frequency Variation Does Not         Exceed 5% .

●Method of Starting：Full Voltage Direct On Line or Y -A Starting .

●Drive Method：BeltService，However,2 Pole 45 kW and Up ,4、6、8Pole F# 280 and Above Coupling Service is the Way .

●Direction of Rotation：CW According to IEC Definition,Suitable For Bi - Directional Operation
